Walker Turner Drill Press - Restoration Complete

I've been slowly putting the old Walker Turner drill press back together.  It's fun to take it slow and do it right.  I've got the time.

It turned out all very well, and every piece is functional.

New wiring was a must.  Here I repurposed a couple of cords from a vacuum cleaner.  I added a ground, too.  I'm a big fan of Wago wire nuts instead of traditional wire nuts - it's fool proof.

I installed a link belt.  It supposedly suppresses vibration, but I like it simply because it's easy to install.  And also it's "one size fits all".  I don't have to have stock different belt sizes.

I noticed just now the driven pulley didn't clean up very well.  I'll have to give it a bit of scotch brite to polish it up.

This mechanism lift the entire head of the drill press.  Now that it is degunked, and the post is polished up, it actually works pretty well!

The one missing part will be fabricated (by me):  The quill lock that keeps the quill/spindle assembly down is missing half the lock.  It's an easy piece to make, so I can knock that out  after work hours.

The depth indicator and related depth stop has numbers that are now legible.

I like this old style switch.  It has a real snap to it and feels very positive.

I do not have the X/Y/theta stage restored at this time, but it's on my list to do.  That will have to happen later this summer.  For now, I've got some other projects bubbling to the top of the priority list.

Side Story:  My lovely wife helped me move this drill press from one workbench to another so I could get some good pictures.  Oh man, this is one heavy heavy piece of equipment.  While we managed to move it with just the two of us, I had some flashes of panic as to if we were going to make it at about step #3 (out of 5 steps total).  After taking pictures, I had Kid #1 and Lovely Wife help me move it back to its final home.  That was the way to go.  I shouldn't underestimate the strength of my daughter.  Lesson learned.

Jumping Ahead - Walker Turner Restoration

 It's been a busy week, but I've managed a little more progress on this old drill press.  Temperatures and humidity have been very good for paint, so you have to make hay while the sun shines.  I think that's how it goes.

I took apart the mechanism that raises and lowers the head of the drill press.  Even though there is 80 years of caked-on goo, it wasn't too difficult to loosen and remove the hardware.

A little time on the wire brush on the bench grinder makes easy work of the grime.

A little paint, and reassembly, and things look and work like new.

I also removed the table from the column, and cleaned it up.  I only painted the underside, and the top will be left raw.  After much wire brushing, it clenaed up very nicely, and I could even see the Blanchard Ground machining marks left behind (unpictured for now)

That left the base with the column.  I tried to remove the column, but it wouldn't budge.  I can work with that, though.

More original color paint on the underside of the base.

Again, more wire brushing, but this time it revealed a patent number in the base.

Masking, wipe down, then paint and cure.  I've been real pleased with how this new Krylon paint sprays, flows, and dries.

Here is the casting for the head.  It's a pretty neat shape, and it is fun to see all the detail the weird geometries.

I masked all the surfaces that were machined for other parts (spindle, column, cam locks, name plate).

And shot the standard paint on.  It looks brand new.

I hope over the weekend I can start reassembling many of these pieces back together.  It should be a fun puzzle.

Progress on the Drill Press Restoration

 It's been a full and busy week at the house with a full schedule of work and kid activities picking up.  But I was able to sneak away in the late evenings and do a little work on the old drill press.

I tore apart most of the pieces out of the head.  The spindle mechanism and all the related parts came out pretty easily.

There is very little wear (if any) on the up/down rack and pinion of the quill.  It should clean up just fine.

I also removed the gear mechanism the raises/lowers the head.  I'll further disassemble it into its smaller pieces for cleanup/paint.

The head casting still has its bearings in place.  I didn't feel anything wrong with them, so I'll probably keep them in place rather than replace them.  I could feel no grit or hear no odd sounds.

I was able to clean up the motor and get it running better with a new start cap and new bleed-down resistor.  I like the two-tone motor to give it a bit of detail.

I"m not sure how to restore the art-deco name plate.  I'll have to do a little research to see how to do that.  Perhaps I can print or stamp a new one myself.  Hmmm.

The rest of the machine looks pretty sparse with all the components removed.  The table is very stuck.  I've been dousing it with penetrating oil the last few nights.  I'm going to bring forth my secret weapon soon:  the torch.

I clean up all the hardware individually, and give them a light paint job.  I find that if I give nuts and bolts a full dose of paint, it chips and peels off when I reassemble.  So, a light coat is fine knowing that I'll touch it up after reassembly without the hassle of removing chipped paint.

I have a three day weekend coming up, so I hope to get a little more done as time allows.

The Walker Turner Drill Press

 A week ago, I was able to buy a cool old drill press off Craigslist.  I know, I know.  I already have an old drill press, so what would I do with another old drill press?  Well, I don't really know.  I thought I could justify it by saying, "one for wood and one for metal", but I don't think I need to justify it.  It's just cool.

This was a 1940s Walker Turner drill press that has been handed down through a family.  Purchased new by the grandfather, then passed down to his son, and then to the grandson.  I think it's pretty cool this old machine stayed in one family so long, so now I feel part of it!

It hasn't been turned on or used for 20 years, so said the current owner.  It had alot of surface rust and dust from 2 decades of storage.

The 80 year old motor is super heavy duty.  Even though it is only 1/3 HP, it weighs like 20 pounds.  It does start and spins, but the start cap is a bit weak, so I'll replace it.  The bearings sound pretty smooth.

Perhaps the coolest feature is that extra hand-crank on the right hand side of the machine.  It lifts the entire head.  Yes - rather than raising or lowering the table, this has a gear mechanism that raises/lowers the entire head/motor assembly.  Wow!

Another unique feature is this X/Y stage beneath the working table of the machine.  It's frozen solid, but it's very similar in construction to a lathe cross-feed of which I'm familiar with.  I'll get this working, too.

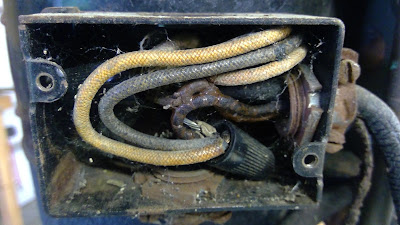

Wires on 80 year old machines are always in bad shape.

Check out this dry rot!

However, I was surprised to see color on the wiring within the junction box.  Usually those wires all fade to dull black and you can't tell what is yellow or green or red or black.

I blew off about 5 pounds of dust, and removed the on/off switch in order to see the original paint color below.  I plan to tear this down and give it the full restoration, so I wanted to see this original color.

I usually try to always stick close to the OEM color, but I don't think I will in this case.  Olive green drab just doesn't strike me as a very snazzy color.  So I'm going off the rails and doing something I haven't done before:  I'm changing up the color scheme.

I cleaned up a piece and tested out a color to see how well I like it.

And I like it!

This is Krylon Hammered Dark Bronze spray paint.  It has a hint of a sparkle and I think it looks really good.  It will compliment the future-polished pieces nicely.  I'm going to go with this.

Note:  I've used Rustoleum for years, and after years of a love/hate relationship with that brand, I'm ending that relationship on "hate".  I believe 50% of my spray cans get clogged up in the first few seconds of use.  I'm no idiot - I know how to paint and how to prep.  I feel Rustoleum has lost its quality.  I even called their customer service hotline to complain, and was given the standard corporate blow-off reply, so I'm switching to Krylon.  So far, so good.  I'm quite impressed!
