The Post Drill Refurb

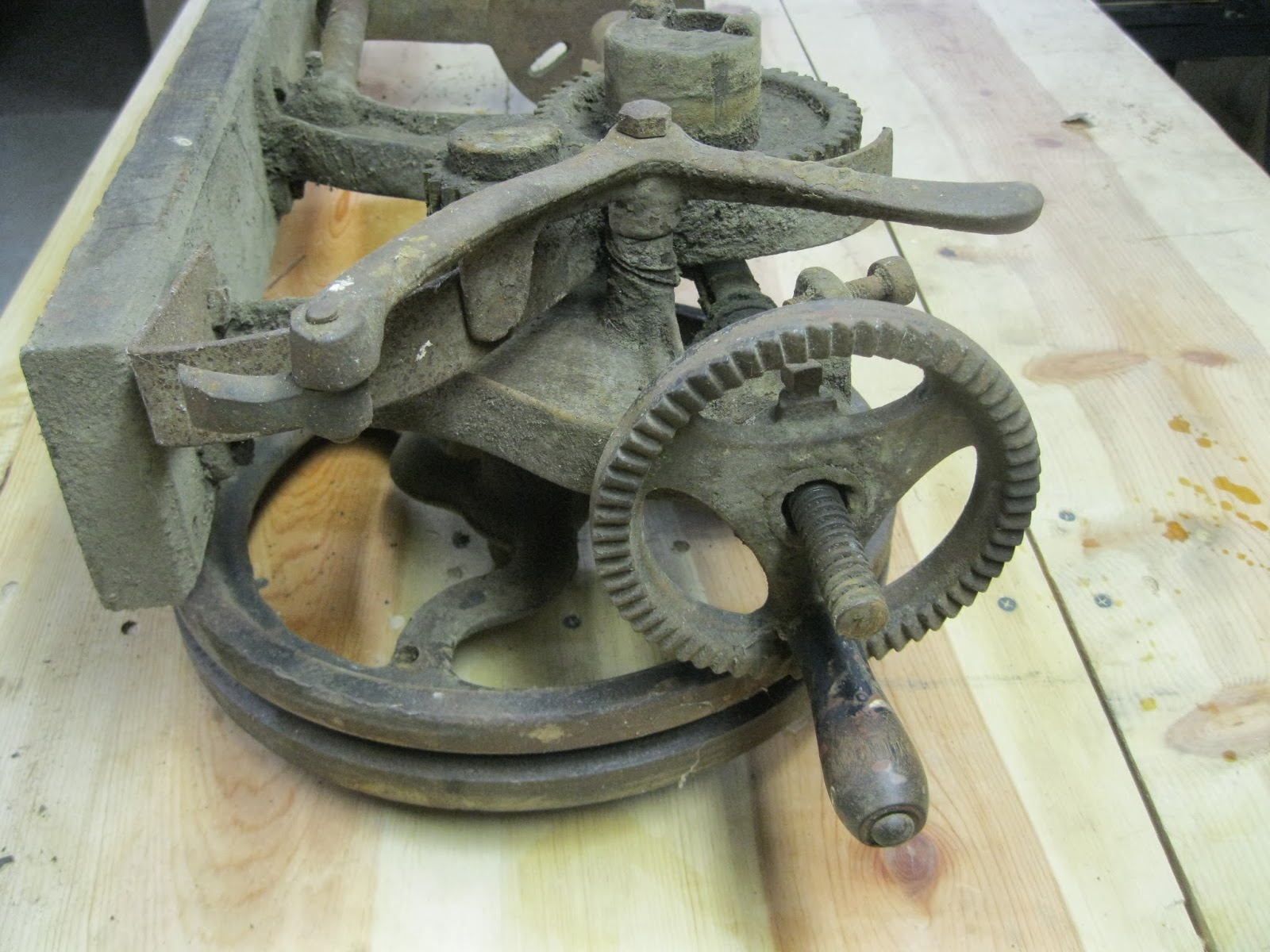

Dad gave me this old post drill a few weeks ago.  As you can

see, it is pretty crudded up with 100+ years of grunge.

A post drill was a blacksmith's drill press.  It was usually mounted on a post in their shop.  They had a handle on the right side (mine is missing) that cranks the gears and turns the spindle.  A large flywheel on the left kept the motion smooth and continuous.  It has a cool little mechanism that automatically lowers the spindle as you crank the machine.  This post drill was made by "Champion Blower and Forge Company" somewhere in the 1905 to 1910 era.

I did a little sandblasting, priming, and painting.

Now it hangs on a wall in the shop in the basement.



 Who knew it could shine up so nicely.  And the oak sure cleaned up well.

A few things left to do:  I would like to fabricate a handle.  I also have the keyless chuck that is pretty well frozen up, and I would like to get that working nicely.

A fun little project.

Depth Gauge Gauge

Anatomy of a chainsaw chain:

Here is a picture of one cutting tooth.  The depth gauge controls how much the cutting edge of the tooth will take off.  The bigger the difference in height between the top of the depth gauge and the top of the cutting tooth will result in a bigger chip.

But, if that gap is too big, the chainsaw motor will bog down.  If the gap is too small, you're not cutting as well as you could be.  I have researched and found this gap should be about 0.025 to 0.030 for hard woods.  If you're cutting softer woods, you can increase that gap up to 0.035 to 0.045, but that sounds like an awful lot to me.

Somehow, I needed to figure out a way to check the height of that depth gauge in relation to the top of the cutting tooth.  I could just hold up a straight edge between a couple of cutting teeth, and see where the chain saw depth gauge is, but how do I quantify that?

Lo and behold, I thought up of a little device and fab'd it up - the Depth Gauge Gauge.

To use this crazy thing, I place it flat against the side of the

chainsaw bar, and then push it down on top of the cutting teeth.

It straddles 2 cutting teeth to create a flat plane.

My dial indicator is on the chain saw depth gauge.

Then read the gauge.  In this picture, I previously set zero to 0.030 below the plane of the cutting edge teeth, thus the gauge is showing 0.026  (that is 0.004 shy of 0.030).

My shopping list was:
1.  A "plunger style" dial indicator - $3.99 off of Ebay.
2.  A nice chunk of walnut - free from a friend.
3.  A chunk of stainless steel - (a re-purposed 3/4" bolt)
4.  Small screws - $0.49 at the hardware store.

The dial indicator was a steal.  Just because it's old and ugly doesn't mean it won't work.  It works just fine.  Total travel distance is 0.100.  The face shows 0 to 0.020 and then back to 0 for a total of 0.040 per one revolution.

The face of the gauge can be rotated to set zero at any plane.  I made the gauge to provide a 0.050 stroke max - I don't foresee any depth gauge on my chainsaw being more than that height.

By making all the chain saw depth gauges to the same height, the chainsaw should run much smoother and shouldn't chatter in the log.  After making this measuring device, I measured every tooth on the saw - all 39 of them.  Depth gauge tooth ranged from 0.018 to 0.029.  And now after a little filing, all 39 of the the depth gauge teeth range from 0.028 to 0.030.  Smooth as silk.

A Beautiful Weekend

A few pics from the beautiful weekend:

Saturday morning soccer was a blast.

Sunday afternoon at Wolf Park was educational.

Fun at a little park in Battleground.

And hiking along Burnett Creek.

The Chainsaw Fixture

I created a little fixture to hold the old McCulloch chainsaw securely in place during maintenance activities.  I made it primarily to help with proper sharpening.  The fixture locates the saw at 3 points, and also holds the bar up and off the bench so the chain can be pulled through easily.

This is the entire fixture.  It doesn't look too fancy.

But the chainsaw fits nicely into it.

Here's a few key features.  This piece holds the handle:

Let's call this Location Point #1.

This funny shape holds the recoil /clutch mechanism:

Location Point #2.

This simple block holds the opposite side:

The 3rd Point of Location.  The saw is now located but one problem remains.

The bar is heavy, so I made this little clamp to hold the bar up.

By holding the bar up, I can pull the chain through when sharpening.

All these criss-cross marks are marks for sharpening.  The silver line is where the bar lies, and the blue sharpening guides are 3.250 inches apart - the same distance as the teeth.

  I follow the lines with my eye while filing.

+30 degrees for the teeth on the right, and

-30 degrees for teeth on the left.

I did all this crazy design and building just to have a better sharpening system.  Without this fixture, I had a little +30 / -30 degree template drawn out on paper.  I tried to keep that under the saw while sharpening, and things always moved around.  It was annoying.  So now with this fixture to assist, I can make a more repeatable file stroke, and be more even in filing.  Even sharpening means less chatter when the saw is in use.

I can now sharpen the saw's 39 teeth in about 2 minutes.

Underground Yellow Jackets

I've been working on killing a couple of underground yellow jacket hives for the past week.  I finally had success with the one near the lilac bush, and am still fighting one near the back of the barn.

We didn't see any bees (yellow jackets, actually, but I'll just call them bees) at the lilac bush nest yesterday, so I decided to take a shovel and dig out one scoop last night.  Then I ran away very quickly.

And today, we still didn't see any bees, so we believed they were all dead or gone.  Being curious, I thought I would do some digging (yes - literal digging).  I dug up the following:

The top of a hive!

Chunks of a hive!

 The hive removed.

Closeup of my dead bees.

Yup - all the bees were dead.  I saw one or two bees walking around kind of funny, and on the verge of death.  As a side note, we were surprised at how bad it all smelled.  It smelled like a dead animal sitting in the sun for many days - rotten flesh.  Ugh.

My method for killing them over the past week involved many ounces of Sevin powder, gasoline, and fire.  I believe the Sevin powder was the key - only one out of the many chunks of the hive appeared to have any fire damage.

Tonight, we piled all the dead bees and chunks of the hive back in the hole, and had one last Bee BBQ.  Tomorrow, I'll fill in the hole and plant some grass seed.  Thereafter, I'll concentrate on my last yellow jacket hive behind the barn.  No gasoline, because it is 2 inches from the foundation.
